Brothers Door Ltd

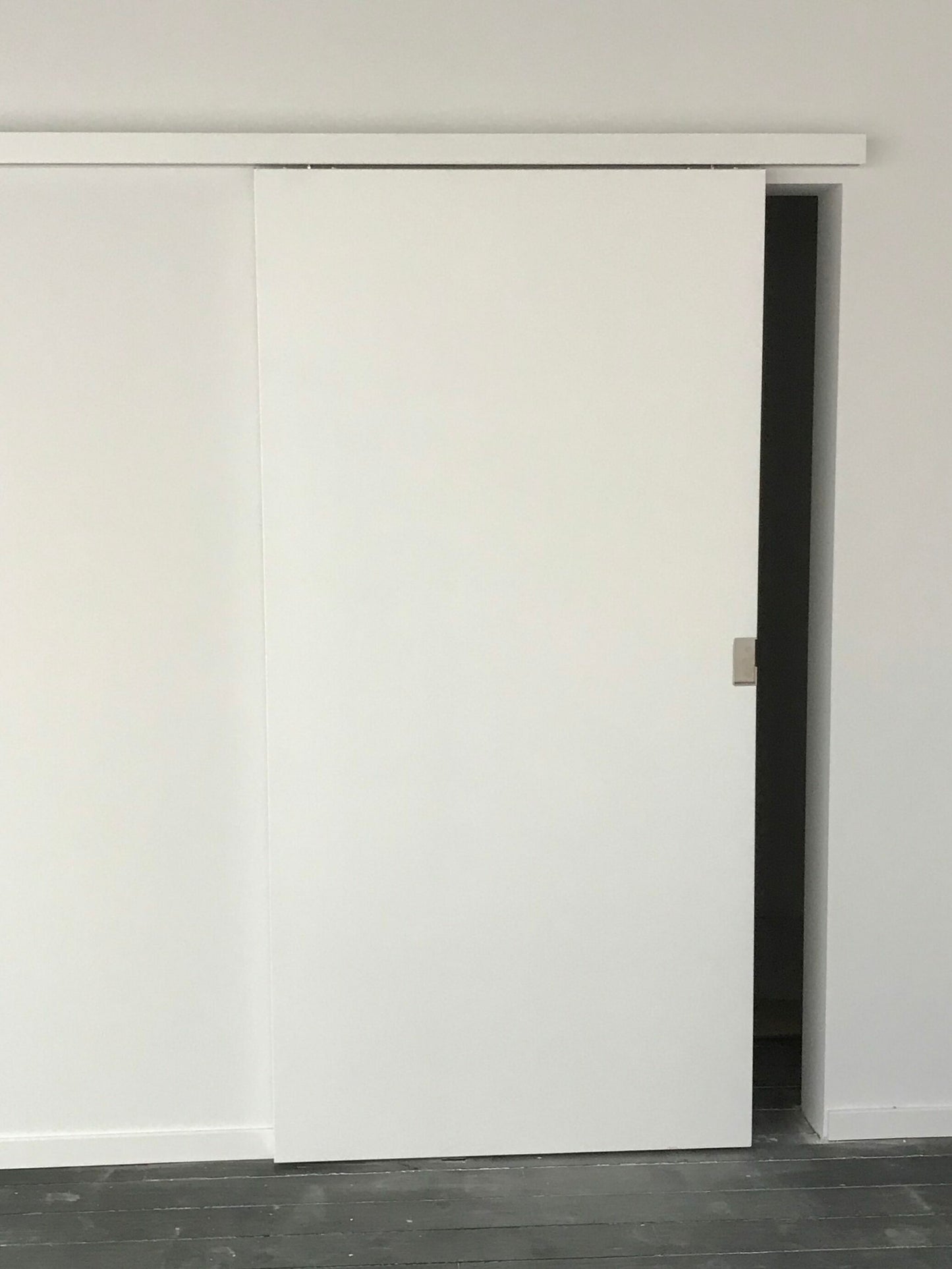

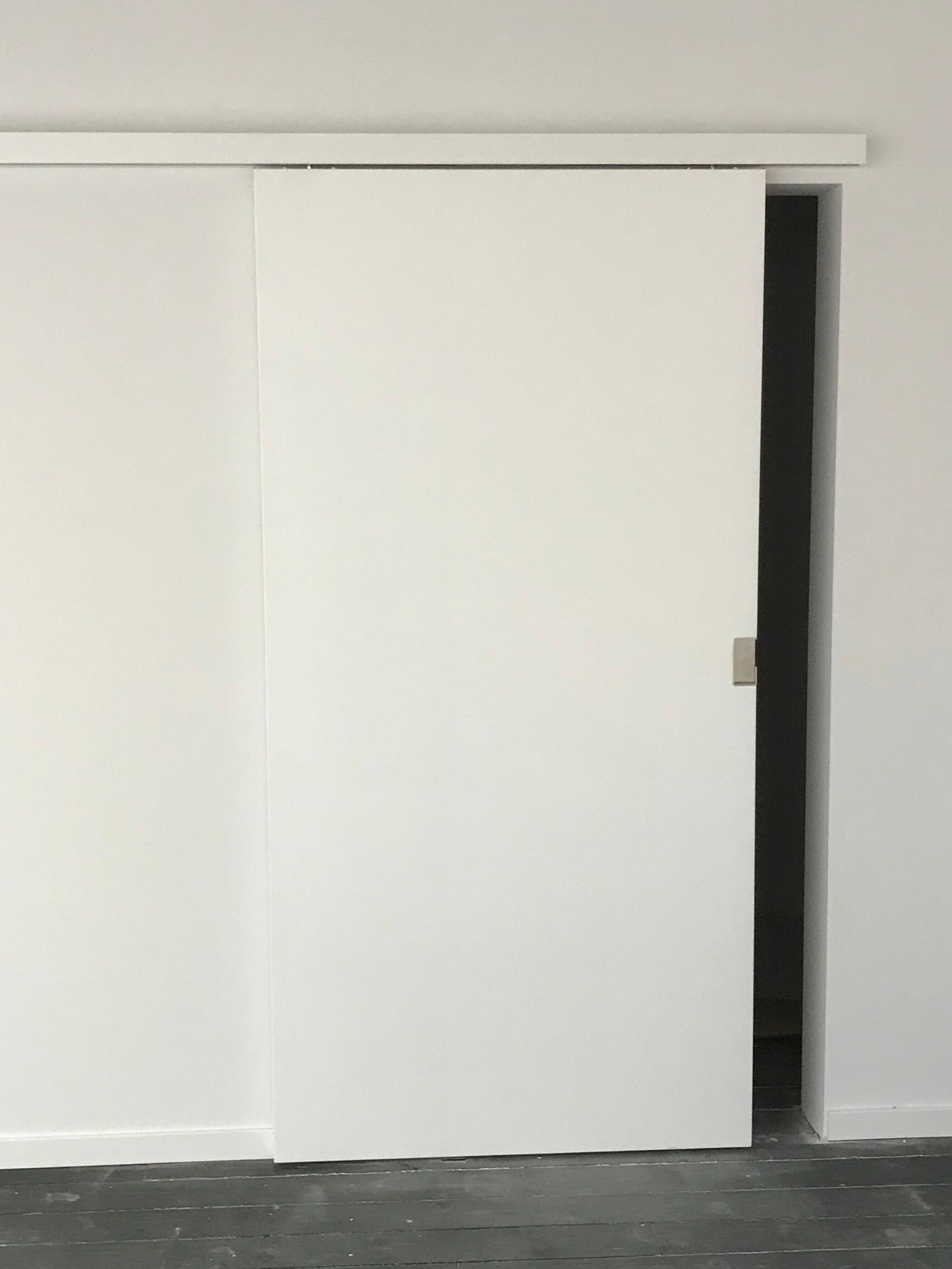

Standard Interior Surface Sliding Door: Flush
Standard Interior Surface Sliding Door: Flush
Regular price
$303.49 NZD
Regular price
Sale price
$303.49 NZD
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Kit comprises:
Standard RibCore door with matching surface-mounted sliding track sets and fitting packs (including pelmets).
Panel Specification:
Max Panel Weight: 30kg
Max Panel Width: 1500mm
Max Panel Height: 2400mm
Panel Thickness: 25-40mm
Sprintline 30 Track Sets and Packs
Sets comprise of top track, hangers, door stops, guide, all timber screws and installation instructions.
Set No.: SL30-16/1 | Max panel width: 900mm | Track Length: 1600mm
Set No.: SL30-24/1 | Max panel width: 1500mm | Track Length: 2440mm
Pack No.: SL30-1PK | Pack of fittings only, without track, for use with one SL30-24/1 set for bi-parting panels, each 720mm maximum width.
Hardware Specification
Track: 169 | Material Aluminium, Mill | Standard lengths 1600mm and 2440mm | Track includes recess for ‘hook-on‘ fascia.
Hanger (2 per panel): 168 | The steel hanger is zinc plated and includes a nylon tyred ball race wheel for smooth operation. Enables an easy, finite height adjustment when panel hanging.
Door Stop: 263 | The steel door stop is zinc plated and includes a rubber buffer. The multiple holes in the plate and the fact that the buffer is reversible, allows precise adjustment for stopping the panel.
Guide: 55G | Guide in white nylon, comes in two parts that fit on both sides of the panel.
The guide is floor mounted.
Fascia 170 | Fascia in pearl white on aluminium. Hooks onto track, no screws required.
Supplied with End Caps. Available in 1800mm and 3050mm lengths.
