Brothers Door Ltd

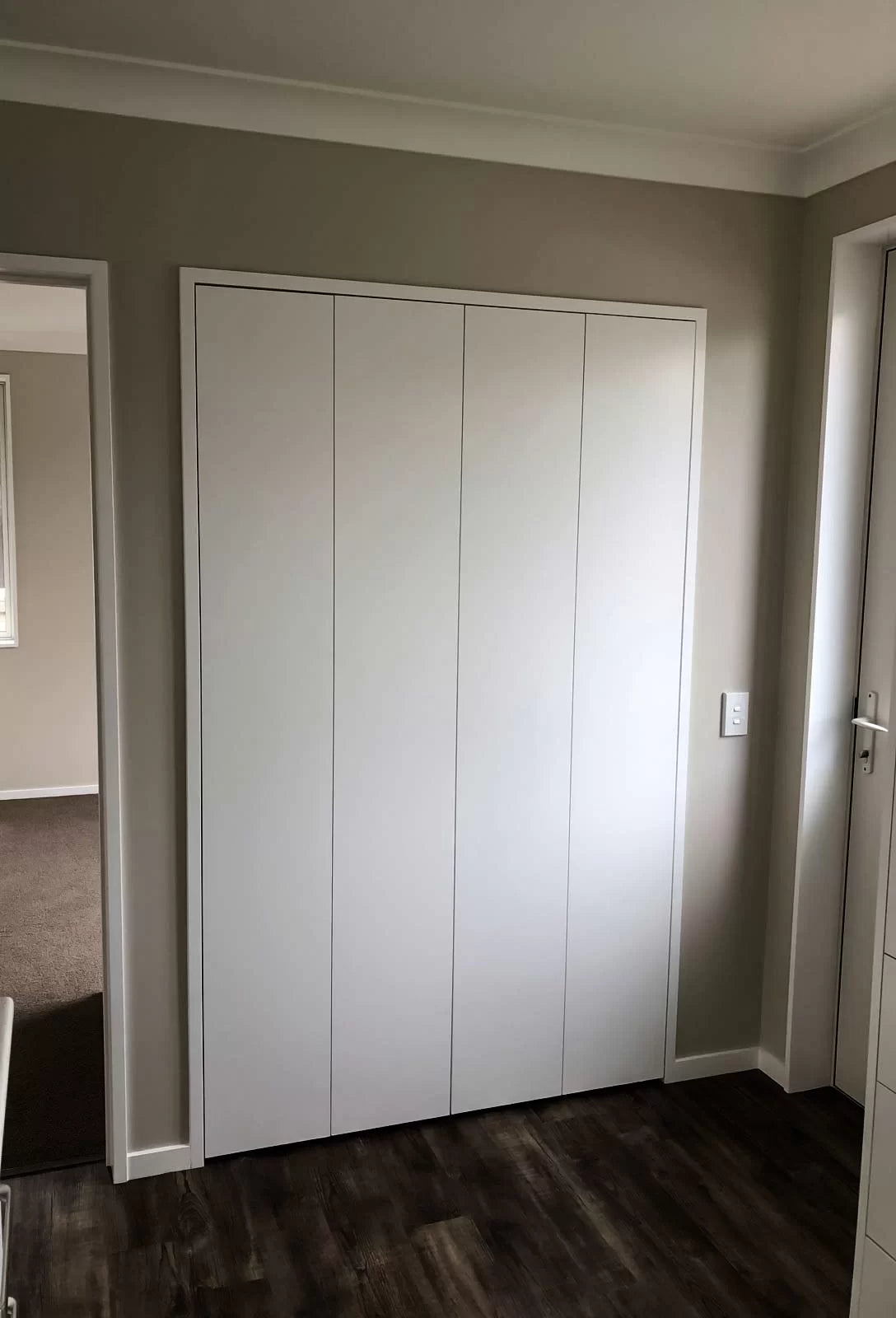

Standard Interior Bi-fold with Four Doors
Standard Interior Bi-fold with Four Doors
Regular price
$617.70 NZD
Regular price
Sale price
$617.70 NZD
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Kit comprises:
Standard Flush RibCore Door plus Track Set.
Stud (if applicable): 90mm
4 Leaf Unit - End Folding in One Direction
Track Set Specification:
Multifold 30 Top Hung Interior Folding Partitions. Max 30kg Each Door
Track: 60A-20/30
Material Aluminium, Mill
Standard Lengths 2000mm/3000mm
Bracket: 91
Stainless steel, supplied with fasteners. Pack of 5, reference 91/5
Bumper: 60DS
Rubber and zinc dichromated steel
Top Pivot Assembly: 818
Nylon and zinc dichromated steel
Bottom Pivot: 802
Zinc dichromated steel and nylon
Wall Bracket: 806
Zinc dichromated steel and nylon, adjustable
Hanger: 607
Zinc dichromated steel and nylon hanger with four nylon tyred ball race bearing wheels
Hinge: 282Z
Zinc plated for 19mm minimum panel thickness, 65mm tall, non-mortice
Channels: 92-A20/30
Aluminium 92 Clear anodised 2000mm/3000mm
Guides: 801S
Spring loaded guide for 92 channel
