Interior Folding: Pivotfold 35 For Top Hung Interior Folding Partitions. Max 35kg Each Door

Pivotfold 35

Application

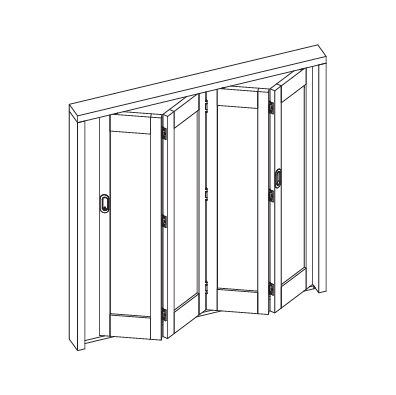

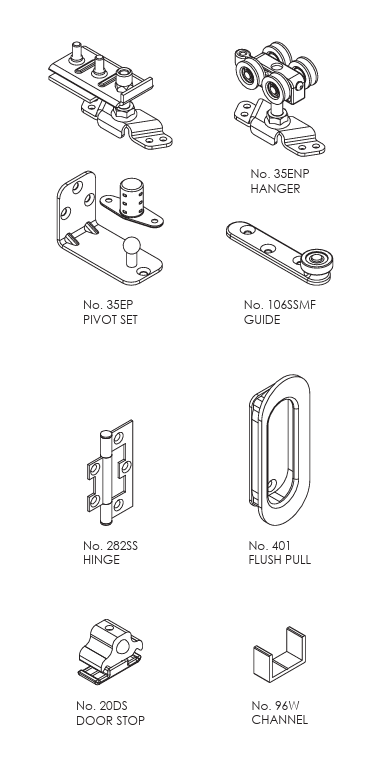

Pivotfold 35 is designed for interior folding doors in residential and commercial applications. Capable of 35kg panels with a maximum of six panels folding each way. Available in pack sets Pivotfold 35 is easy to install with a pivoted first panel, allowing all panels to be of equal size. Configurations of two, four and six panels can be pivoted to each side of the opening.  The option of no channel is possible with a restriction of two panels each way.

Specification:

Max Panel Weight: 35kg
Max Panel Width: 900mm
Max Panel Height: 2400mm
Min Panel Thickness: 35mm or 38mm with Flush Bolts
Max Number of Panels: 6 each way

Quantities:

Bracket Quantity and Spacing
