Interior Folding: Interfold 50 For Top Hung Interior Folding Systems. Max 50kg Each

Interfold 50

Application

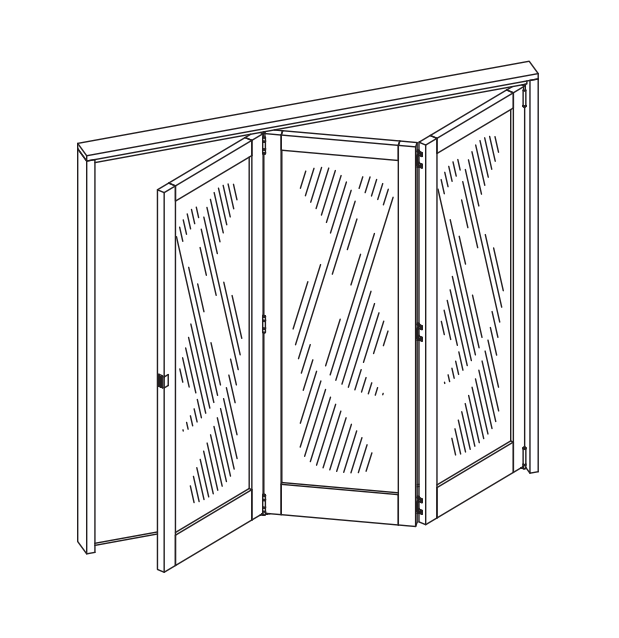

Interfold 50 uses precision chrome bearings with an offset guide and concealed channel to fold top hung panels of 50kg in residential and commercial interior folding applications. The system allows panels to close against rebates which is necessary for applications where sound and light proofing is required. Interfold hardware is suitable for timber door systems with all doors of equal width.

Specification:

Max Door Weight: 50kg
Max Door Width: 1000mm
Max Door Height : 3000mm
Min Door Thickness: 35mm
Max Number of Panels: 6 each way

Quantity:

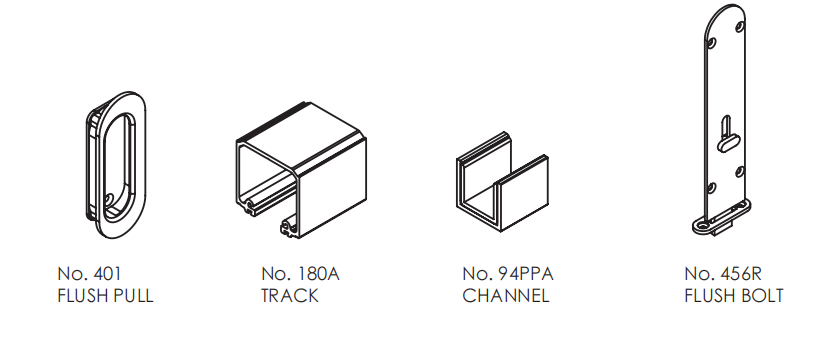

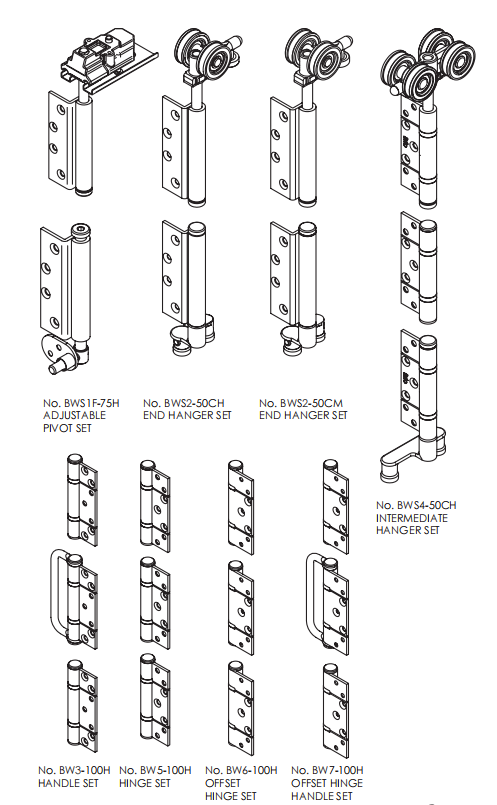

Hardware Specification:
