Barn Door: Open Bar Rail Timber 80 For Top Hung Straight Sliding Panels 80 kg

Open Bar Rail Timber 80

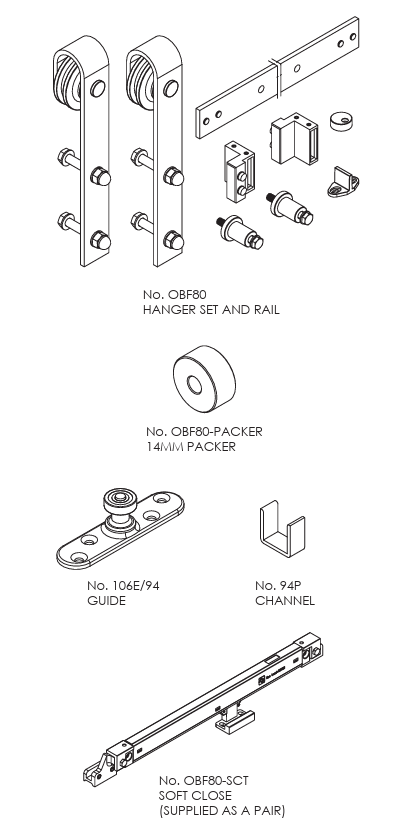

Brio’s new flat bar system offers a barn door solution for panels up to 80kg in weight. Hangers use a nylon tyred, precision bearing to move smoothly over the flat bar rail and face fix straps provide easy installation.  Pack sets include hangers, doorstops,  guide and bracket fixings with either 2m or 2.5m lengths of rail.  Choose from the satin stainless steel or powder coat black, mild steel options.

Specification:

Max Panel Weight: 80kg
Max Panel Width: 1250mm
Max Panel Height: 3000mm
Min Panel Thickness: 35mm
Max Panel Thickness: 44mm

Number of Panel: 1
